Product Details

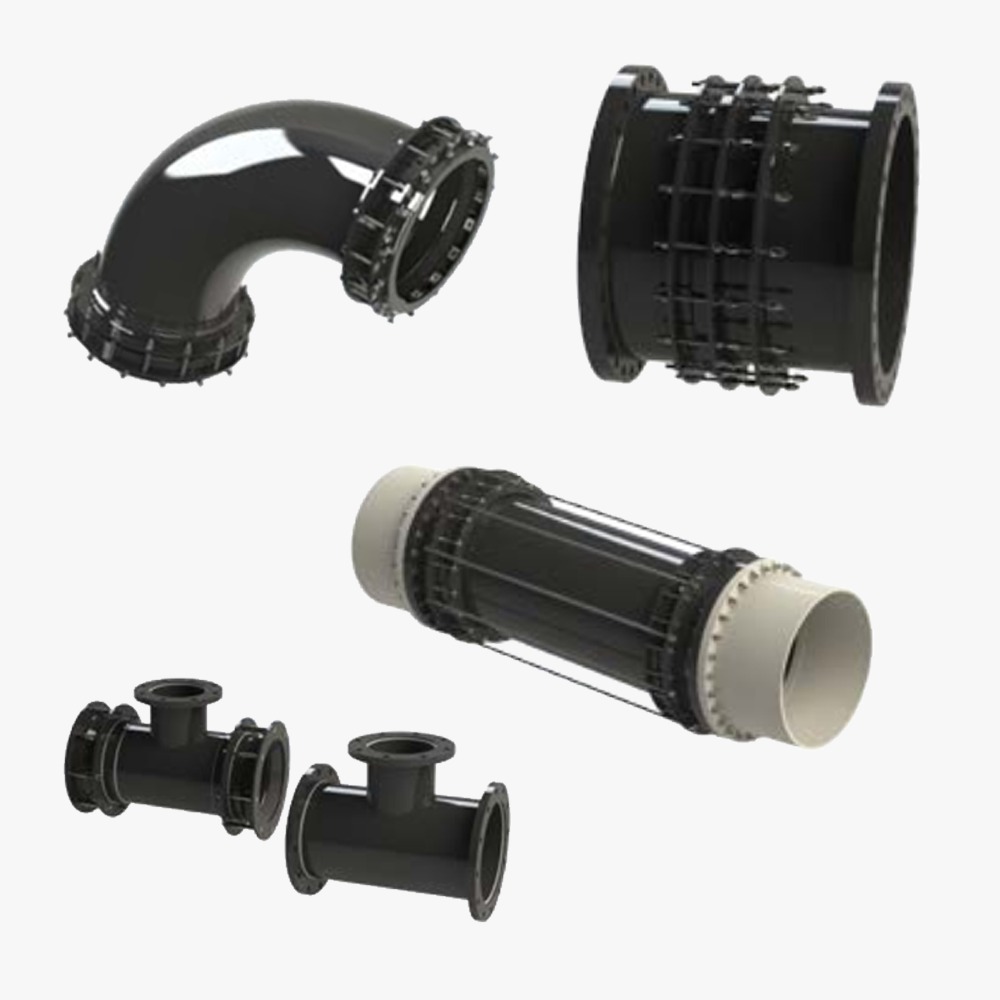

T, elbows, etc.
Angular Compensators (WIDEFLEX)
Axial Compensators (JOLLY JOINT)
Endcaps (also available with adaptable sockets)
T, Y and cross preces (also available with adaptable sockets)
Elbows (also available with adaptable sockets)
FF Pieces
Transition Flanges
•	Body and compression followers : carbon steel
•	Anti – corrosion coating : RISLAN NYLON 11 ?
•	Bolts, nuts, washers : steel with anti – corrosion coating (alternatively : stainless steel A2/A4)
•	Sealing gaskets EPDM or NBR

Adavantages
•	Wide tolerance range : from 24 to 50 mm.
•	Fast installation.
•	Ease of installation : no welding, no specialized labour, no special equipment.
•	Pipe ovality and angular deflection compensation
•	PN 10-16 bar rated, higher pressures available.

Pipe Materials
•	Steel
•	Concrete
•	Asbestos Concrete
•	HDPE
•	PVC
•	Ductile and Cast Iron
•	GRP

Data Sheet
•	JOLLY JOINT meets the need to combine several functions in a single joint:
• dismantling joint
• linear compensation joint
•	WIDEFLEX is a simple, easy to install angular compensation joint that can be used in a wide range of applications on pressure pipes or gravity flow installations whenever it is necessary to compensate settlements of the ground or of the pipeline.
•	ANTI – LEAK CLAMP provides the repairing of live pipelines without shutting down the service on:
• asbestos cement pipe sockets
• cast or ductile iron sockets or couplings
• GRP and steel pipe sockets
•	END RESTRAINT CLAMP
The mechanical locking system “Pipe locking system”, which consists of radial grippers “Pipe locking system” allows to eliminate the axial movement at the sealing gasket points of the pipe on:
• socket or coupling of cast/ductile iron pipes
• socket of steel pipes
