Hawle VALVES AND ACCESSORIES

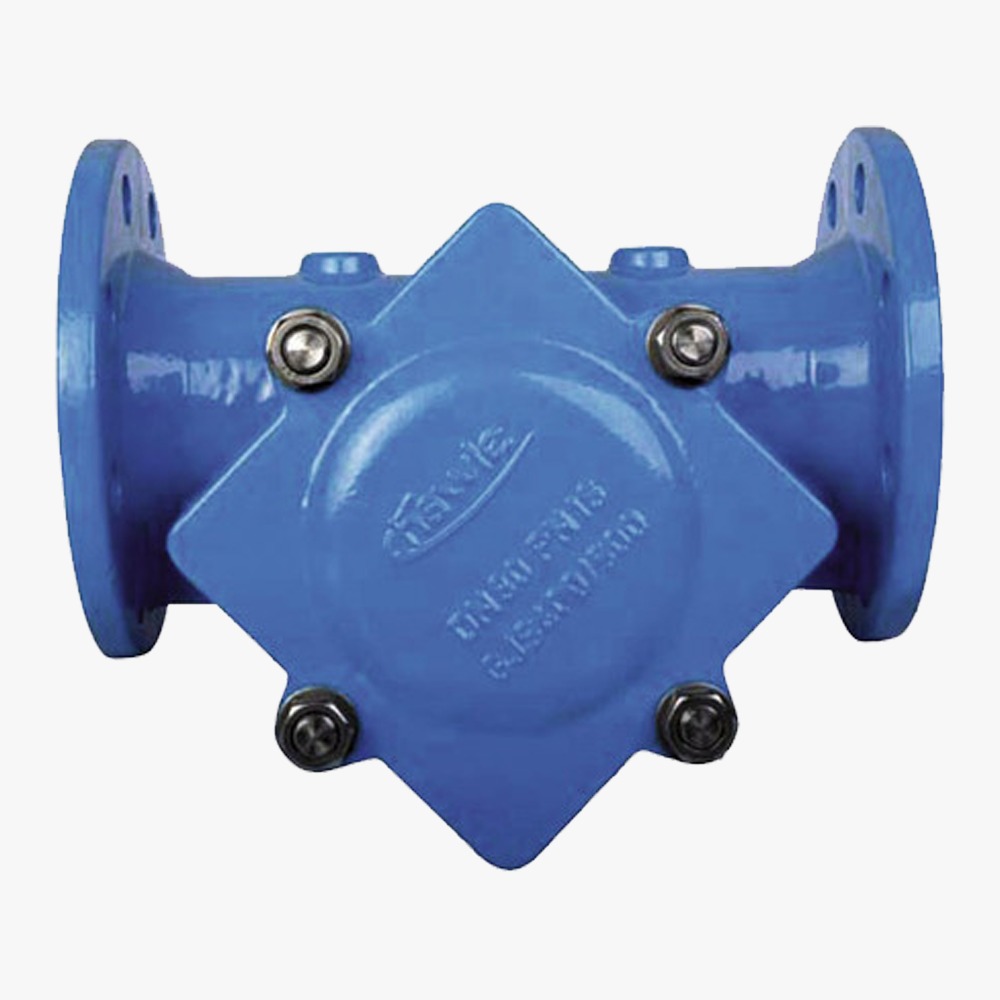

Strainer HAWLE, side service entry
Model Number Strainer
Type VALVES AND ACCESSORIES
Minimal Order 1
Perkiraan Waktu 14 - 16 Weeks
Minta Penawaran Harga (WhatsApp) Kirim Inquiry More Details

Produk Hawle Terkait

E1+ valve with flanges, short, with DUPLEX spindle

E1+ valve with flanges, short, with DUPLEX spindle

E1+ · VALVES AND ACCESSORIES
Air release valve with Flange

Air release valve with Flange

Air release · VALVES AND ACCESSORIES
Air release valve with internal thread

Air release valve with internal thread

Air release · VALVES AND ACCESSORIES
Air Release Valve, double orifice with travelling valve

Air Release Valve, double orifice with travelling valve

Air Release · VALVES AND ACCESSORIES
Product Details
9911
Diameter range DN 50–DN 200

Pressure rating PN 10 I PN 16



Strainers protect the pipelines and plants.
The fine-mesh double screen made of stainless steel reliably catches all particles with a diameter larger than 0.5–0.6 mm.
Face-to-face length according to EN 558-1 GR 1 (DIN 3202 T1–F1)
Strainers are designed for installation in horizontal pipelines.
Installation in sloping and vertical pipelines is permissible if the medium flows from top to bottom.
Please ensure that the flow direction matches the arrow direction on the body, and that the dirt cage is oriented downward.
The lateral access to the double screen makes it quicker and easier to remove the strainer.
The new design boasts significantly higher flow capacities.
