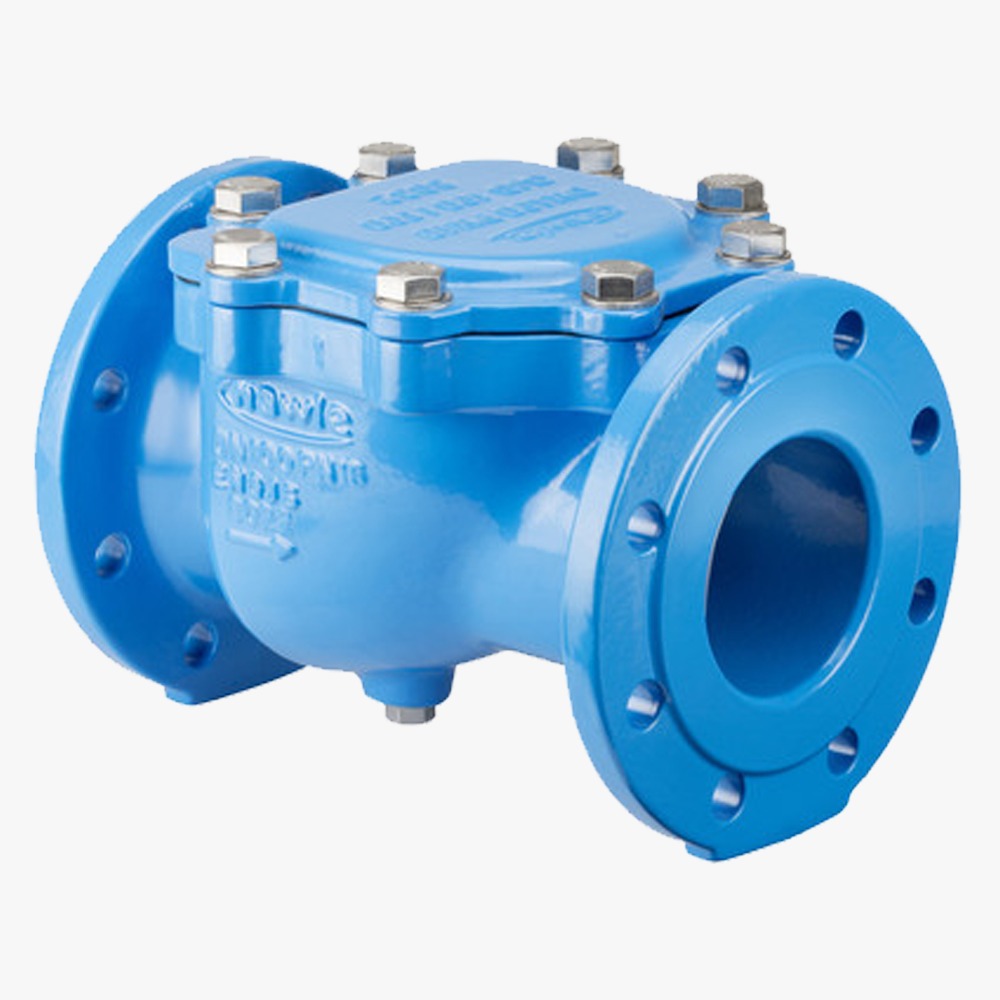

Non Return Valve HAWLE, without lever and counterweight, vulcanized flap
| Model Number | Non Return |
|---|---|
| Type | VALVES AND ACCESSORIES |
| Minimal Order | 1 |
| Perkiraan Waktu | 14 - 16 Weeks |
Produk Hawle Terkait
Product Details
9831 Diameter range DN 50–DN 200 Pressure rating PN 10 Check valves protect the pipelines and plants against flow medium back-streaming The flap opens automatically in the flow according to the arrow on the valve housing Body length according to EN 558-1 GR 48 Flange measured according to EN 1092-2, drilled according to EN 1092-2 | PN 10 standard; EN 1092-2 | PN 16 from DN 200 please specify upon ordering – additional standards upon request Low weight, improved cleaning, corrosion-free flap bearing, optimized flow characteristics, easy maintenance min. opening pressure 0.03 bar min. closing pressure 0.5 bar (tightness)
Technical Data
