Hawle
VALVES AND ACCESSORIES

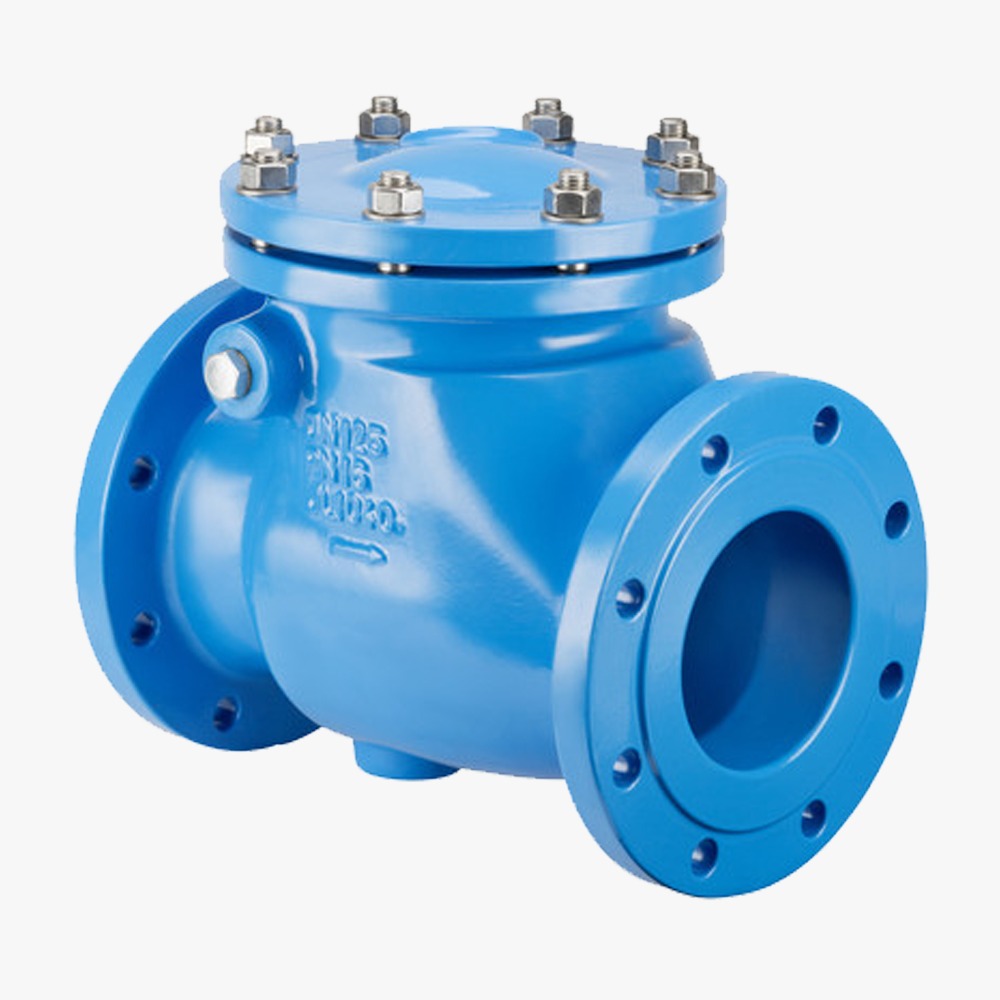

Non Return Valve HAWLE, without lever and counterweight
| Model Number | Non Return |
|---|---|
| Type | VALVES AND ACCESSORIES |
| Minimal Order | 1 |
| Perkiraan Waktu | 14 - 16 Weeks |
Produk Hawle Terkait
Product Details
9830 Diameter range DN 40–DN 300 Pressure rating PN 10 I PN 16 Check valves protect the pipelines and plants against flow medium back-streaming The flap opens automatically in the flow according to the arrow on the valve housing Body length according to EN 558-1 GR 48 Flange measured according to EN 1092-2, drilled according to EN 1092-2 | PN 10 standard; EN 1092-2 | PN 16 from DN 200 please specify upon ordering – additional standards upon request min. opening pressure 0.03 bar min. closing pressure 0.1 bar (tightness)
Technical Data
Form Penawaran Harga Produk
Isi formulir untuk mendapatkan surat penawaran resmi (Quotation) untuk Non Return Valve HAWLE, without lever and counterweight.
