Product Details

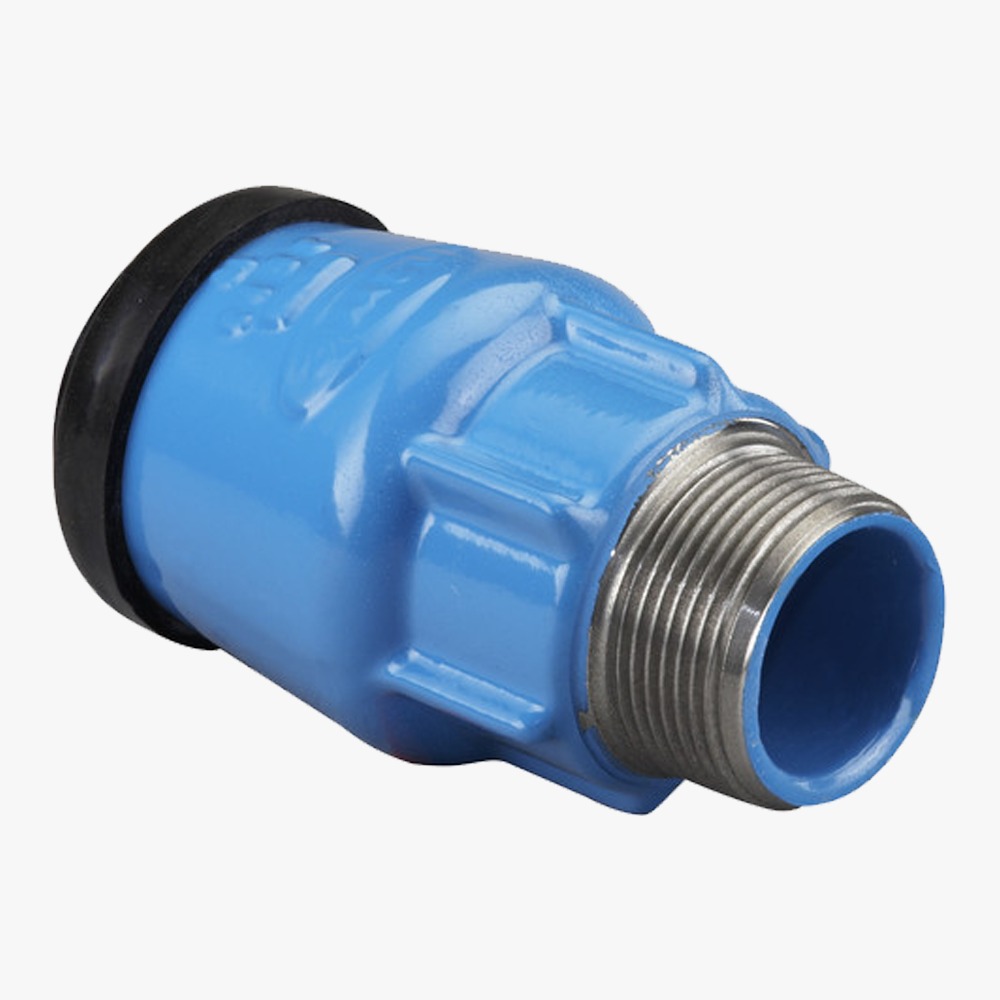

6100, with external thread EN 102261
For PE pipes according to EN 12201-2 and DIN 8074, up to PN 16
The HAWLE ISO pipe fitting is the easiest way joining polyethylene pipes
The ISO pipe fitting is suitable for use in drinking water area up to a temperature of 30 °C
The gripping and sealing functions act only the o.d. of the pipe; thereforce only one fitting is required for all pressure ratings up to PN 16
The function of the ISO pipe fitting is clear and simple; the O-ring is made of elastomer and seals well even when the pressure is nil, because it is compressed onto the pipe
As the water pressure and pipe tension increase, the sealing and grip rings are compressed further into the conical chamber, thus increasing the sealing and gripping effect
The joint is flexible and the fitting can be turned on the pipe without affecting the grip or seal. Assembly the fitting is quick and simple and can be dismantled if required.
This design has been well proven for many years in water distribution and is used in pipelines with pressures up to PN 16 (also in vacuum situations, with support liner)
All ductile iron fittings with internal threads are fitted with a corrosion protection ring to prevent corrosion
For ductile iron fittings with external thread, after assembly the free lying threads must be protected against corrosion according to the trade regulations


All ISO pipe fittings can also be supplied for PVC pipes with a spezialised grip ring at extra cost.
