Hawle
VALVES AND ACCESSORIES

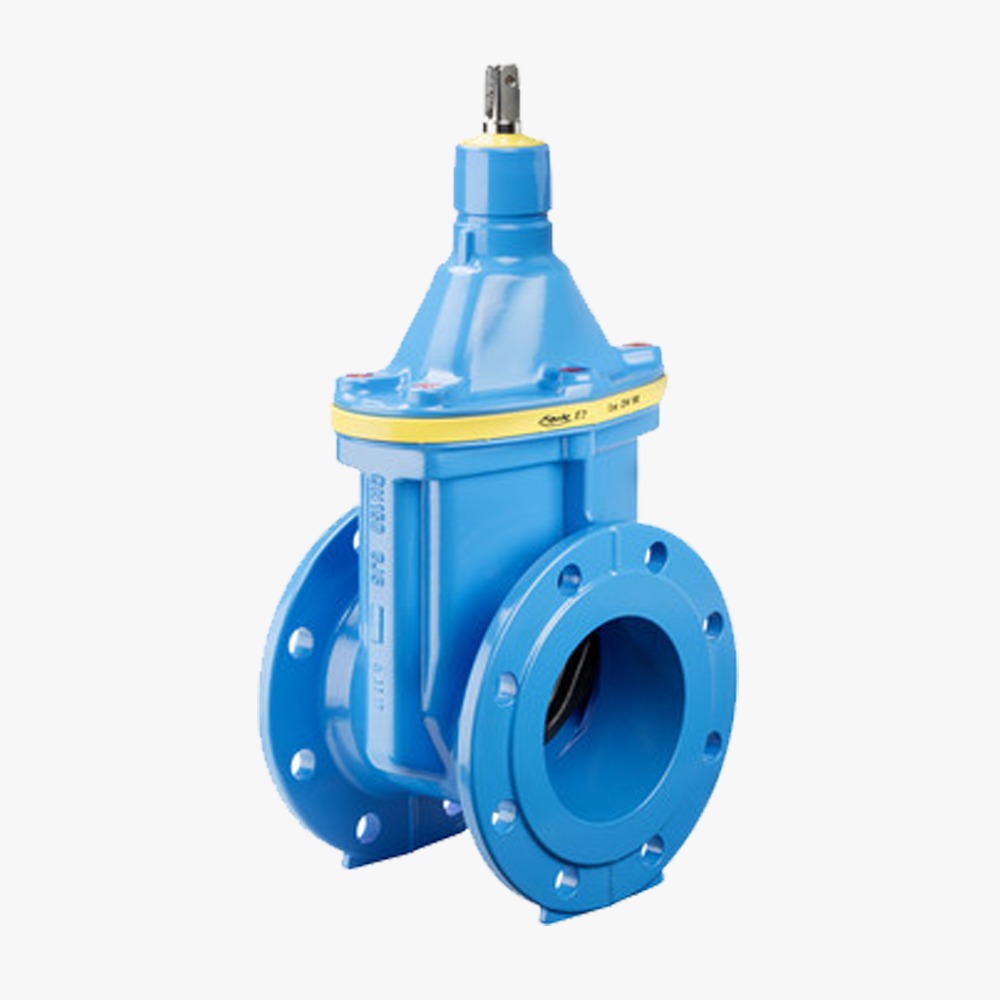

E2 valve with flanges, short - for gas
| Model Number | E2 |
|---|---|
| Type | VALVES AND ACCESSORIES |
| Minimal Order | 1 |
| Perkiraan Waktu | 14 - 16 Weeks |
Produk Hawle Terkait
Product Details
4005E2 Soft wedge gate valves with clear cut and free flowing passages in compliance with EN 13774 (EN 1074-1 and 2) Readily operated without a bypass or power reinforcement – even at 16 bar differential pressure Sealing system: the wedge rubber profiles close with minimal friction in the body. There is no abrasion and thus no wear of the sealing body The special wedge guide in wear-resistant plastic ensures lowest wear and tear and minimum Operation forces, suitable for frequent actuation at differential pressures of up to 16 bar Oversized spindle nut with threads, withstands enormous operating torque 100% suitable for underground Installation Roller bearing as a spindle bearing ensure Minimum operation force (DN 250 - DN 500) Standard model: without handwheel and extension spindle Model variants: with position indicator No. 4005STE2 Flanges measured and drilled to EN 1092-2. Standard PN 10. Please indicate PN 16 when ordering. Temperature range: operation: -10° C to 50° C Bearing: -25° C to 70° C
Technical Data
