Product Details

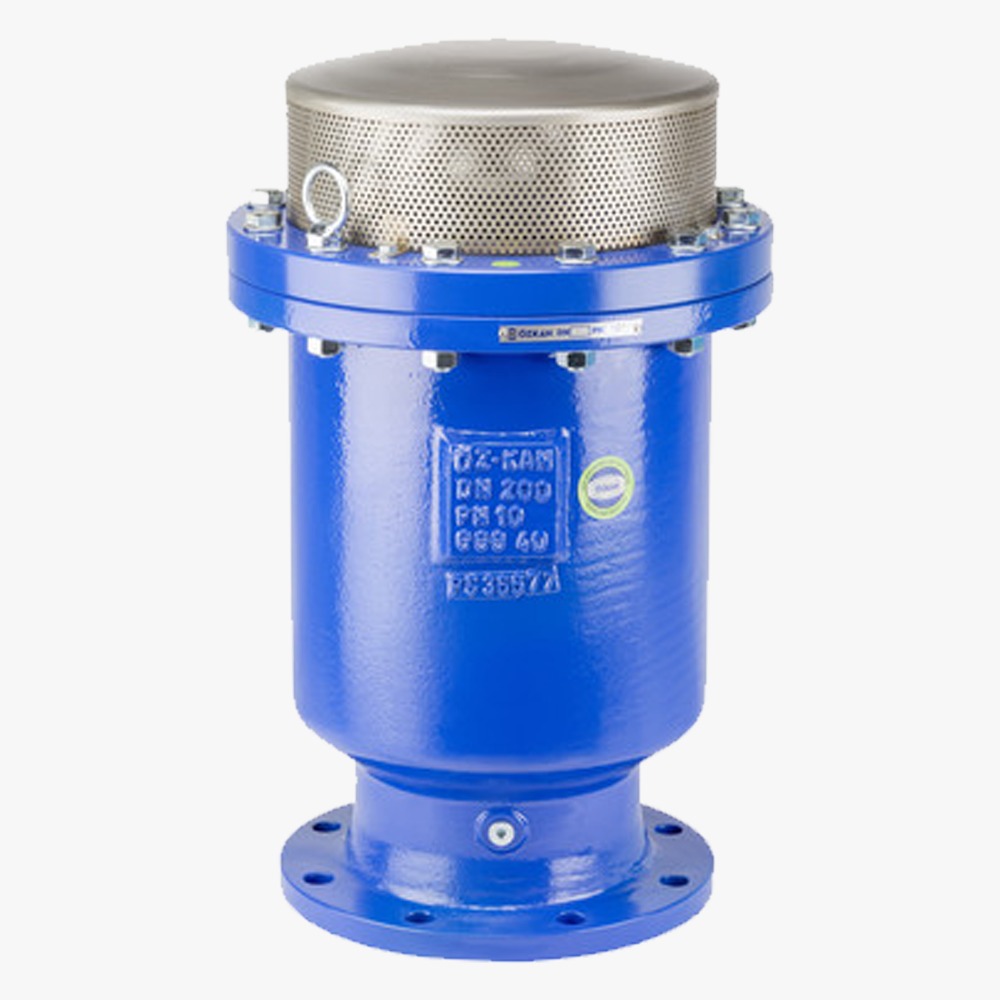

9842, with cylindrical floats
Diameter range DN 50 (2") – DN 300

Pressure rating PN 10 I PN 16 I PN 25 I PN 40



Air release outlet in NOMINAL SIZE (large opening cross-section according to the flange size).
Flange according to EN 1092 (DN 50 also available with 2" threaded connection).
Efficient vacuum protection through high ventilation performance.
Optimal ventilation without early closure owing to very high air outlet speeds when filling the pipes or reservoir.
Effective protection against water hammers with high air release speeds thanks to 2-stage ventilation system.
Consistently reliable ventilation of air pockets under working pressure.
Compact structure, low volume, and low weight.
Robust and reliable technology.
The body is made of cast iron and coated with high-quality epoxy powder.
The interior parts are made of corrosion-resistant materials.
