Hawle VALVES AND ACCESSORIES

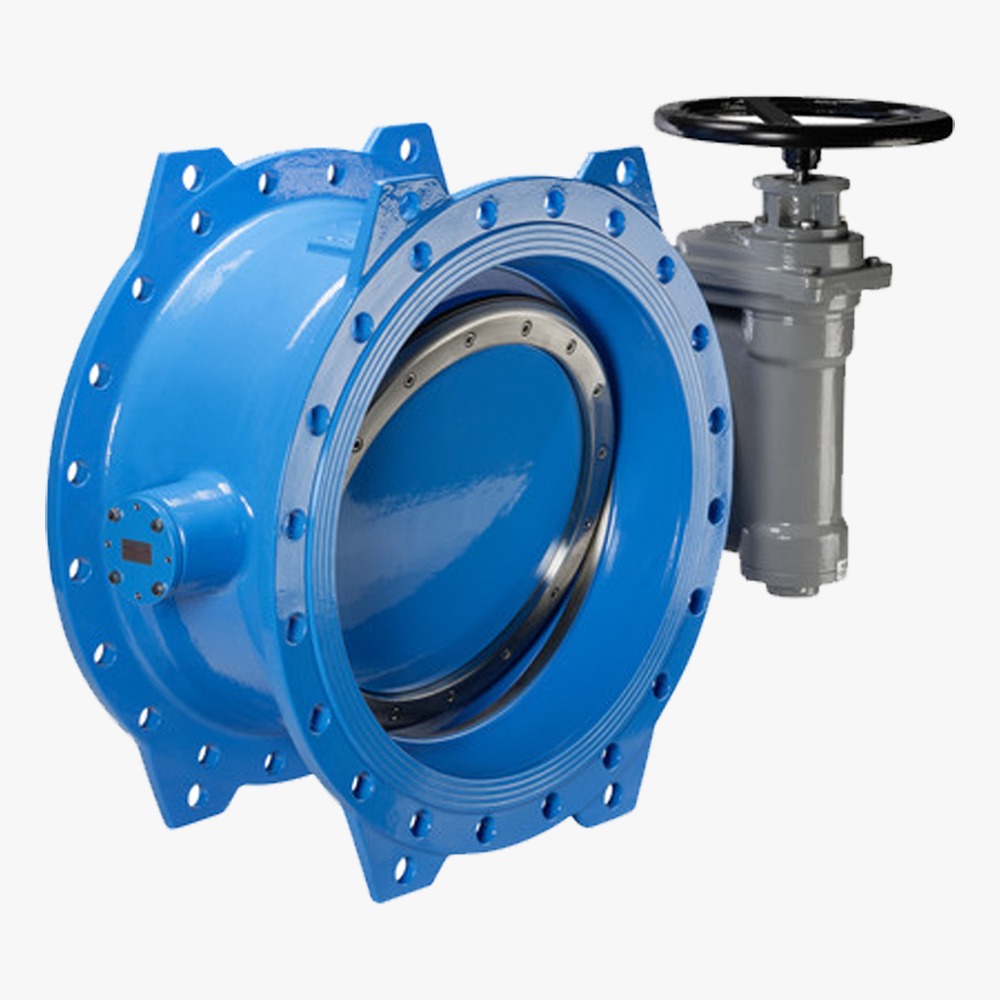

Hawle Butterfly valve double eccentric
Model Number Butterfly
Type VALVES AND ACCESSORIES
Minimal Order 1
Perkiraan Waktu 14 - 16 Weeks
Minta Penawaran Harga (WhatsApp) Kirim Inquiry More Details

Produk Hawle Terkait

E1+ valve with flanges, short, with DUPLEX spindle

E1+ valve with flanges, short, with DUPLEX spindle

E1+ · VALVES AND ACCESSORIES
Air release valve with Flange

Air release valve with Flange

Air release · VALVES AND ACCESSORIES
Air release valve with internal thread

Air release valve with internal thread

Air release · VALVES AND ACCESSORIES
Air Release Valve, double orifice with travelling valve

Air Release Valve, double orifice with travelling valve

Air Release · VALVES AND ACCESSORIES
Product Details
9881K, double flanged

DN 150 - DN 1400
For shallow pipeline connections


Design features

Standard version including actuation device: Wormgearbox and handwheel
Protection class IP 68
Applicable for below ground installation, simple assembly of the extension spindle
Applicable for actuator
Face-to-face dimension according EN 558 – 1 SERIES 14
Flange connection dimensions according to EN 1092-2
Pressure rating PN 10 | PN 16


Material | Technical features

Sealing seat made of stainless steel welded and microfinished
Body and disk made of ductile iron, epoxy powder coated inside and out
Sealing rings made of elastomer
Retaining ring made of stainless steel
Shafts made of stainless steel
All connections made of stainless steel
Bearings made of bronze
Handwheel made of cast iron, epoxy powder coated
Technical Data
