Product Details

Standards

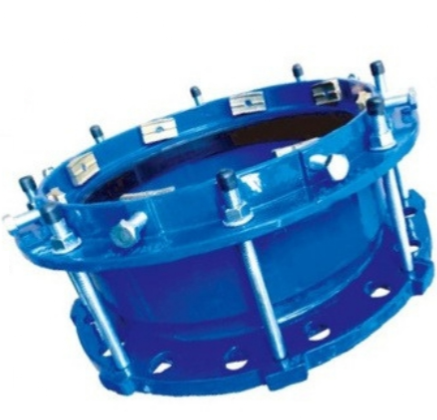

Multigrip restrained flange adaptor: complies with EN545
Coating standard: EN30677 / EN14901
Flange drilling: EN1092-2 PN10/16, ASME B16.5 Class 150, AS4087
Test standard: EN12266-1

Working Pressure and Temperature
Working pressure: PN10 / PN16
Size range: (menyesuaikan OD pipe — wide tolerance range)
Maximum temperature: -10 °C to +70 °C
Seal material: NBR (others available upon request)

Features
Suitable connection for ductile iron, steel, PVC, PE, stainless steel, AC, etc.
Mechanical locking by means of metal inserts to prevent axial pipe movement
Total angular deflection: ±4°
Corrosion-resistant construction
Wide tolerance range
Applicable for potable water, neutral liquids, and sewage
WRAS approved
Bolts, nuts, washers: Grade 8.8 / stainless steel, with various coating options

Options
Carbon steel bolts Grade 4.8 / 6.8 / 8.8 with galvanization, dacromet, teflon, etc.
Stainless steel bolts SS304 / SS316 / SS316L / A2 / A4
FBE coating and Nylon 11 coating available
