Product Details

IWM-TX4 has been designed to allow wireless remote reading in different types of applications in commercial and industrial sectors.
The radio module thanks to the presence of the inductive target into the meter dial allows the reading of the volume consumption without any constraints of access to the site in walk-by mode or AMR (automatic meter reading), in respect of the WMBUS standard and complying with the OMS (Open metering system) specification.

Radio interface
W-Mbus EN13757-4 @868 MHz ? 25 mW, mode T1

Coverage
500 meters*

Compatible water meters

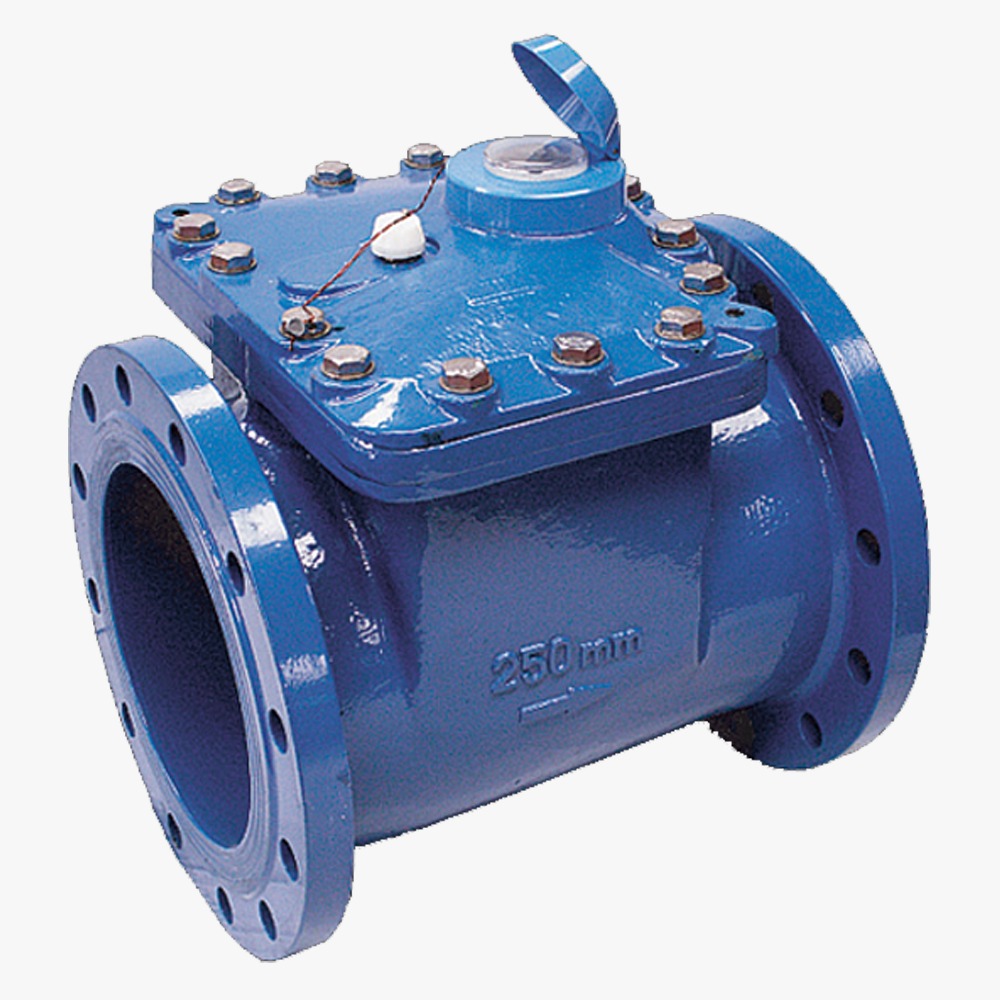

WDE-K50

Pulse output minimum value (K)
10 liters (up to DN125) or 100 liters (from DN150)

Configuration
Via radio (with RFM-RX2 and software B Metering), NFC (with Android app)

Energy supply
Non-replaceable lithium battery, maximum lifetime 10 years**

Protection class
IP68***

Weight
167 g

Size (l x p x h)
100 x 100 x 57 mm

Working Temperature
+1° / +55°C

Transmitted data
Volume (consumption), total of backward flow, 12 monthly historical values, battery status, alarms.

Alarms
Discharged battery, module removal, magnetic fraud attempt, backward flow, leakage detection.

Module programming requirements
Android device (smartphone, tablet, etc.) with an NFC interface and the NFC IWM Config APP freely downloadable from GOOGLE PLAY

* In optimal signal transmission conditions ** The battery life strongly depends on the working time window, set during the configuration process, and on the environmental conditions *** IP68: maximum 24 hours of continuous submersion at 1 m depth.
