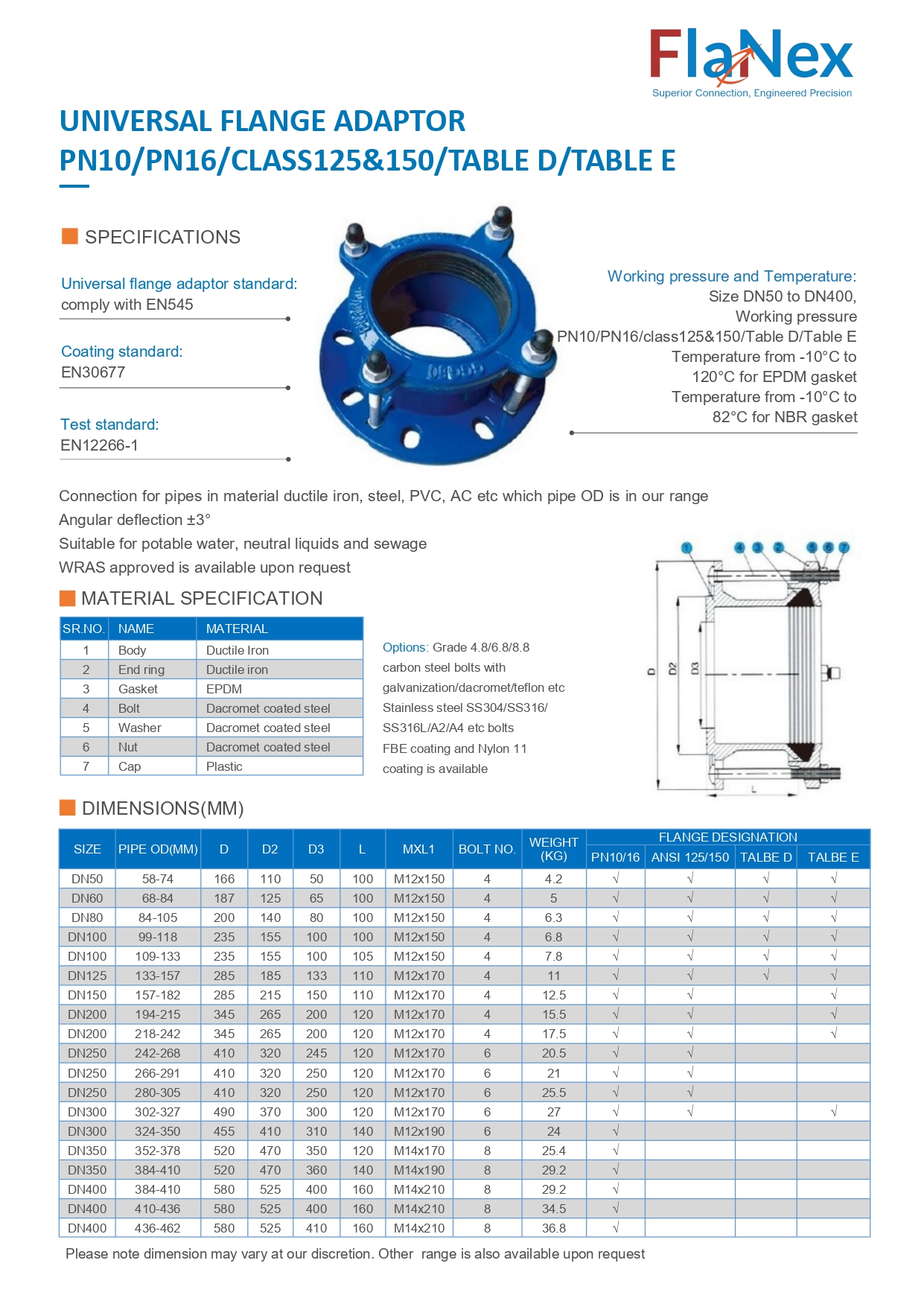

Product Details

Standards
Universal flange adaptor: complies with EN545
Coating standard: EN30677
Flange compatibility: PN10 / PN16 / Class 125 & 150 / Table D / Table E
Test standard: EN12266-1

Working Pressure and Temperature
Size range: DN50 to DN400
Working pressure: PN10 / PN16
Temperature: -10°C to 120°C for EPDM gasket
Temperature: -10°C to 82°C for NBR gasket

Features
Suitable connection for ductile iron, steel, PVC, AC and other pipe materials (within OD range)
Angular deflection: ±3°
Applicable for potable water, neutral liquids, and sewage
WRAS approval available upon request

Options:
Carbon steel bolts (Grade 4.8 / 6.8 / 8.8) with galvanization, dacromet, teflon, etc.
Stainless steel bolts SS304 / SS316 / SS316L / A2 / A4
FBE coating and Nylon 11 coating
